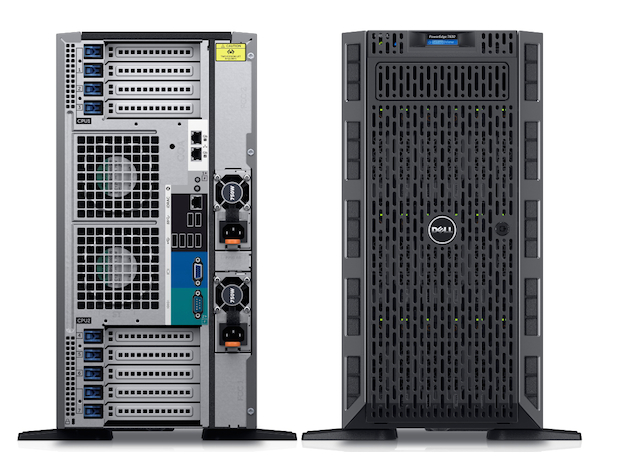

Dell PowerEdge T630 Server

Dell PowerEdge T630 Tower Server Detayları

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Tailor your tower to your workloadsAccelerate demanding workloads with the powerful and flexible PowerEdge T630 2-socket tower server, a member of the 13th generation of PowerEdge servers.

Versatile and efficient performance: Drive rapid response times with the latest Intel® Xeon® processor E5-2600 v4 product family, DDR4 memory and seven I/O slots.

Expanded capacity, unprecedented capability: With support for up to 50 percent more hard drives than previous generations, the PowerEdge T630 brings new capabilities to small and medium businesses and remote offices running mail and messaging, medical imaging, server and desktop virtualization, andbudget-conscious graphical rendering. Supporting up to 32 x 2.5" or 18 x 3.5" hard drives, the T630 can store more mailboxes of larger sizes can dramatically lower your cost per mailbox. Flexible storage configurations allow you to meet exacting workload requirements, while ample drive space allows for cost-effective, in-server expansion.

Fast storage, fast insights: Up to four NVMe Express Flash PCIe SSDs and the optional 12Gb PowerEdge RAID Controller (PERC9) make the PowerEdge T630 ideal for a wide range of IOPs-hungry workloads includingdatabase, enterprise resource planning (ERP) and decision support. For increased application acceleration, the T630 can take advantage of optional SanDisk® DAS Cache for even faster data access. In-server storage tiering and multi-mode RAID options also help optimize virtual storage for VMware® vSAN™ and Microsoft Storage Spaces.

Powerful GPU acceleration: From graphical rendering to implementing virtual desktops, support for up to four
optional GPU accelerators enables additional performance and capability.

Simplify and automate your IT management tasksManage your servers the way you want: individually, collectively, in-person, remotely or with your smartphone — it’s your choice. Consistent administration and 3rd-party integration ensures seamless management of PowerEdge servers.

	Simplify administration of PowerEdge servers with the embedded intelligence of the integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller and with the robust, timesaving management features of the entire Dell OpenManage portfolio.
	Agent-free management from iDRAC8 with Lifecycle Controller offers real-time monitoring for the server and internal storage devices. It also monitors server health, internal parameters and system performance without requiring agents to be installed in the server operating system — agents which could require additional upkeep and consume valuable CPU time.
	Lifecycle Controller provides deployment, update and support automation on demand to maximize data center efficiency and can automatically inventory, monitor and update any new Dell PowerEdge system added to the data center. It includes managed and persistent onboard storage that, when combined with its systems management capabilities, eliminates the need for traditional media-based system management tools and utilities.
	Zero-touch automated deployment discovers and auto-configures Dell servers by using configuration files stored in designated locations on an internal network, which can reduce setup time and manual entry errors.
	Automated server updates synchronize servers to firmware baselines stored at designated locations on an internal network to simplify firmware updates.
	The Tech Support Report, automatically maintained by iDRAC, is a continuously updated health and status report that monitors over 5,000 key system parameters and can help cut time needed to identify and resolve server issues.

PowerEdge T630 - Monitor and manage from anywhere

Monitor and manage from anywhereAdminister systems from your smartphone, laptop or at the system with both local and remote management options.

Use your smartphone with the OpenManage Mobile app to securely monitor remote systems.
Use a USB memory stick to upload configurations files for BIOS, iDRAC, PERC, LAN on motherboard (LOM) and network interface card (NIC) updates with the iDRAC Direct feature.
Connect a laptop via USB to a specific server’s embedded iDRAC8 management-console interface for robust "at-the-system" management.

Designed for the future-ready workplaceWhether installed as a tower or rack-mounted server, the PowerEdge T630 is ready to drive your demanding workloads today and into the future. With its powerful and scalable performance, Fresh Air 2.0 compliance and library-quiet acoustics, it has the versatility to accelerate a wide range of demanding workloads.

Teknik Spesifikasyonlar

Processor

Intel® Xeon® processor E5 2600 v4 product family

Operating System (Dell recommends Windows 10 Pro.)

Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®

Chipset

Intel C610 series chipset

Memory1

Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Embedded Hypervisor (Optional)

Microsoft® Windows Server® 2008, with Hyper-V®
VMware® ESXi
Citrix XenServer

Storage

SAS, SATA, Near-line SAS, SSD, PCIe SSD
Up to 4 optional Express Flash PCIe SSDs
Up to 144TB via 18 x 8TB 3.5” HDDs

Drive Bays

Internal hard drive bay and hot-plug backplane:
Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay
Up to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bay
Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay

Slots

Slot 1: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 2: Full Length, Full Height, PCH - PCIe Gen2 x4 (x8 connector)
Slot 3: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 4: Half Length, Full Height, CPU2 - PCIe Gen3 x8 (x8 connector)
Slot 5: Full Length, Full Height, CPU2 - PCIe Gen2 (DMI) x4 (x8 connector)
Slot 6: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 7: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 8: Half Length, Full Height, CPU1 - PCIe Gen3 x8 (x8 connector)

RAID Controllers

Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830

Network Controller

2 x 1Gb

Communications

Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

Titanium efficiency 750W AC power supply
Gold efficiency 1100W DC power supply
Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply

Availability

ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller

Graphics Card

Video Type :Integrated Integrated Matrox G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory

GPUs – Support for up to four optional 300W internal GPU processing accelerators

Chassis

Form Factor: 5U
Height 443.5 mm (17.5 inch) with feet
434.5 mm (17.1 inch) without feet
Width:48.2cm (18.98”)
Depth:75.09cm (29.56”)
Max Weight:
T630 full system with 2.5” HDD:
Max 2.5"x16 (6 fans) 37.57Kg/82.75lb
Max 2.5"x32 (6 fans) 40.55Kg/89.32lb
T630 full system with 3.5” HDD:
Max 3.5"x18 (6 fans) 49.65 Kg/109.36 lb
