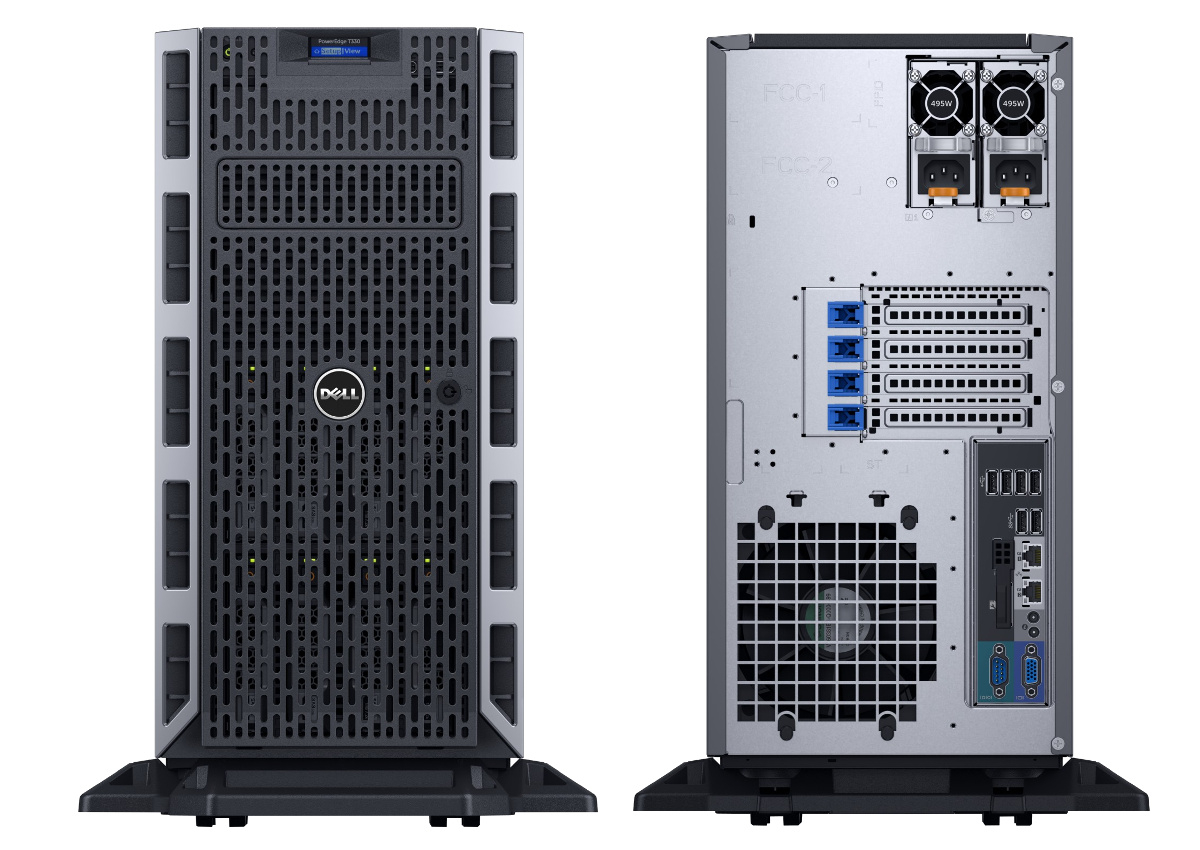

Dell PowerEdge T330 Server

Dell PowerEdge T330 Server Ürün Detayları

ÖZEL FİYAT TEKLİFİ ALIN

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Accelerate application performance

Accelerate application performance while providing room for future growth with the latest Intel® Xeon® processor E3-1200 v5 product family, DDR4 memory and PCIe Gen3 I/O.

Drive greater memory performance with 4 x DIMM slots and DDR4 memory, which transfer data 33% faster than previous-generation DDR3.2
Boost data throughput with 4 x PCIe Gen 3.0 slots driving 2x data throughput compared to Generation 2.0.
Drive 2x IOPS performance with the PowerEdge PERC9 RAID Controller, compared to previous-generation PowerEdge T320 equipped with PERC8.3

Discover greater versatility

Grow data storage at your own pace with up to 8 x internal 3.5" hot-plug hard drives.
Expand memory capacity as you grow, with support for up to 64GB total memory footprint.
Easily and flexibly attach peripheral devices with eight external USB ports.

Reliable, worry-free operation

Deploy rapidly and turn the server over for productive work sooner with Dell OpenManage systems management solutions.
Easily monitor system health and behavior with the simple, intuitive Dell OpenManage Essentials console.
Save IT administrator time by automating firmware updates — up to 92% reduction in firmware update time using Repository Manager auto-updates compared to manual updates.

Teknik Spesifikasyonlar

Processor

1 processor from the following product families:
Intel® Xeon® processor E3-1200 v5 product family
Intel Pentium®
Intel Core i3®
Intel Celeron®

Operating System (Dell recommends Windows 10 Pro.)

Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Red Hat® Enterprise Linux®
VMware® vSphere® 2015
SUSE® Linux Enterprise Server®

Chipset

Intel C236

Memory1

Architecture: Up to 2133MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB

Embedded Hypervisor (Optional)

Hypervisor Support

Microsoft Windows Server with HyperV®
VMware vSphere ESXi®

Storage

2.5” SATA 7.2K
2.5” SATA SSD's
2.5” nearline SAS 7.2K
2.5” SAS 10K HDDs
2.5” SAS 15K HDDs
3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs

Drive Bays

8 x 3.5" bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)

Slots

4 slots:
1x8 PCIe 3.0 (x16 connector)
1x4 PCIe 3.0 (x8 connector)
1x4 PCIe 3.0 (x8 connector)
1x1 PCIe 3.0 (x1 connector)

RAID Controllers

PERC S130, PERC H330, PERC H730, PERC H830

Network Controller

Broadcom® BCM5720

Communications

2 X 1GbE LOM

Power

1 x 350W cabled PSU
or up to 2 x 495W redundant PSUs

Chassis

Tower server (5u when racked)

Rack Support ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

Device Access

8 total USB:

Rear USB: 2 x USB3.0 + 4 x USB 2.0
Front USB: 1 x USB 2.0 + 1 x USB 3.0

Management

Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center

Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware vCenter®

Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli® Netcool®
CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)

Dimensions

Height: chassis base height - 430.3 mm/17.04 in
With foot - 443.3 mm/17.45 in
With wheel - 471.3 mm/18.55 in

Width: chassis base width - 218 mm/8.58 in
With foot - 304.5 mm/11.98 in

Depth: front to rear wall (w/o bezel) - 542.2 mm/21.33 in
front to PSU handle (w/o bezel) - 578.42 mm/22.77 in
front to rear wall (with bezel) - 558.6 mm/21.99 in
front to PSU handle (with bezel) - 594.82 mm/23.41 in
