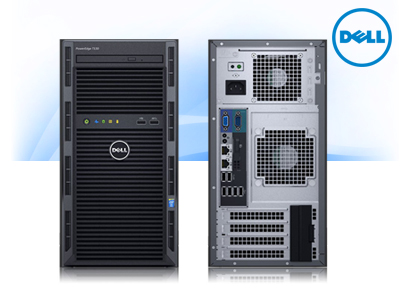

Dell PowerEdge T130

Dell PowerEdge T130 Tower Server Detayları

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Get organized and become more productive

Consolidate data from multiple laptops or desktops onto a single server with up to 4 x internal 3.5" hard drives.
Ensure fast response times with the latest Intel® Xeon® processor E3-1200 v5 product family.
Easily and flexibly attach peripheral devices with eight external USB ports.

Accelerate application performance

Drive greater memory performance and expand capacity up to 64GB through time with 4 x DIMM slots and DDR4 memory, which transfer data 33% faster than previous-generation DDR32.
Boost data throughput with 4 x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0
Drive 2x IOPS performance with the PowerEdge PERC9 RAID controller, compared to previous-generation PowerEdge T110 II equipped with PERC83.

Reliable, worry-free operation

Deploy rapidly and turn the server over for productive work sooner with Dell OpenManage systems management solutions.
Easily monitor system health and behavior with simple, intuitive Dell OpenManage Essentials console.
Save IT administrator time by automating firmware updates — up to 92% reduction in firmware update time using Repository Manager auto-updates compared to manual updates.

Processor

1 processor from the following product families:
Intel® Xeon® processor E3-1200 v5 product family
Intel Pentium®
Intel Core i3®
Intel Celeron®

Operating System (Dell recommends Windows 10 Pro.)

Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Red Hat® Enterprise Linux®
VMware® vSphere® 2015
SUSE® Linux Enterprise Server®

Chipset

Memory1

Architecture: Up to 2133MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB

Embedded Hypervisor (Optional)

Hypervisor Support
Microsoft Windows Server with Hyper-V®
VMware® vSphere® ESXi®

Storage

3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs
3.5” 7.2K SATA entry drives

Drive Bays

Slots

4 slots:
1 x8 PCIe 3.0 (x16 connector)
1 x4 PCIe 3.0 (x8 connector)
1 x4 PCIe 3.0 (x8 connector)
1 x1 PCIe 3.0 (x1 connector)

RAID Controllers

Network Controller

Communications

2 X 1GbE LOM
Click here for T130 supported network interface cards (NICs) and host bus adapters (HBAs) and scroll to “Additional Network Cards” section.

Power

Chassis

Device Access

8 total USB:

Rear USB: 2 x USB 3.0 plus 4 x USB 2.0
Front USB: 1 x USB 2.0 plus 1 x USB 3.0

Management
