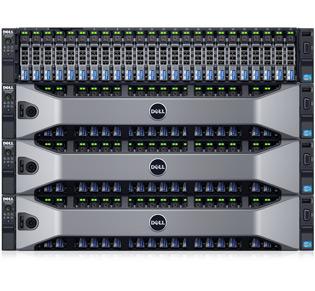

Dell PowerEdge R730xd Server

Dell PowerEdge R730xd Server Detayları

ÖZEL FİYAT TEKLİFİ ALIN

R730xd Spec Sheet

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Accelerate your workloads

Maximize server-based storage flexibility and performance with the remarkable PowerEdge R730xd, part of the new 13th generation of PowerEdge servers. The R730xd offers an optimal balance of storage utilization, performance and cost with an optional in-server hybrid storage configuration that can support tiering and capacity for up to 28 drives in a 2S/2U system, including up to 18 x 1.8" SATA SSDs.

Flash storage anywhere, or everywhere: New flash-capable configurations mean fast data access for faster applications performance. Configurations include 1.8" SATA SSDs, 12Gb SAS SSDs and ultra-high-performance NVMe Express Flash PCIe drives that enable optional Dell Fluid Cache for SAN and SanDisk DAS Cache application acceleration technology.

Flexibly leverage SSDs to maximize application performance. With flexible zoning and dual PERC cards, you can now flexibly leverage SSDs to maximize performance in 4 SSDs + 20 HDDs, 8 SSDs + 16 HDDs or 12 SSDs + 12 HDDs.
Enhance database performance by using flash drives to cache "hot" data, while simultaneously having up to 48TB2 of server-based storage with NL-SAS/SATA HDDs.
Increase concurrent usage and system response for OLTP applications by combining NVMe drives and Dell caching solutions.
Provide efficient, high-performance scale-out storage for IT-as-a-service (XaaS) providers, Big Data (Hadoop) users and co-location hosting by combining traditional hard drives and solid-state flash drives to ensure data is where it's needed, when it's needed.

PowerEdge r730xd Rack Server - Accelerate your workloads

Unified communications and collaboration

The PowerEdge R730xd with improved networking throughput and the latest Intel® Xeon® processor E5-2600 v4 product family delivers the performance necessary for your SharePoint, Lync, Exchange and consolidated collaboration environments.

Enable more, bigger and lower-cost mailboxes with 33 percent greater storage drive capacity than previous generations.
Improve response times with up to 15 percent greater memory bandwidth than earlier generations and help increase IO performance with the customizable throughput of Dell Select Network Adapters.
Enhance overall Exchange performance with 12Gb PERC9 RAID controllers, featuring double the cache and throughput over previous generations.
Optimize Lync performance and responsiveness in virtual environments by directly mapping more VMs to the increased number of physical processor cores.

PowerEdge r730xd Rack Server - Storage virtualization

Storage virtualizationThe latest Intel® Xeon® processor E5-2600 v4 product family, with up to 22 cores per socket, provides the cycles and threads necessary to support today’s diverse workloads in virtual environments, including virtualized local storage. To further enhance these deployments, the R730xd features:

DDR4 RAM that supports more, larger and higher-performance virtual machines per node, drawing up to 30 percent less power than previous-generation DDR3 RAM
Multi-mode RAID controllers with twice the storage bandwidth of previous generations
Compatibility with software defined storage (SDS) solutions, such as Microsoft Storage Spaces, VMware® Virtual SAN™ (vSAN) and OpenStack Ceph

Simplify and automate your IT management tasksManage your data center servers the way you want: individually, collectively, in-person, remotely or with your smartphone — it’s your choice. Consistent administration and 3rd-party integration ensure seamless management of PowerEdge servers.

Simplify administration of PowerEdge servers with the embedded intelligence of the integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller and with the robust, timesaving management features of the entire Dell OpenManage portfolio.

Agent-free management from iDRAC8 with Lifecycle Controller offers real-time monitoring for the server and internal storage devices. It also monitors server health, multiple internal parameters and system performance without requiring agents to be installed in the server operating system — agents which could require additional upkeep and consume valuable CPU time.

Lifecycle Controller provides deployment, update and support automation on demand to maximize data center efficiency and can automatically inventory, monitor and update any new Dell PowerEdge system added to the data center. It includes managed and persistent onboard storage that, when combined with its systems management capabilities, eliminates the need for traditional media-based system management tools and utilities.

Zero-touch automated deployment discovers and auto-configures Dell servers by using configuration files stored in designated locations on an internal network, which can reduce setup time and manual entry errors. Administrators can simply rack, cable and walk away.

Automated server updates synchronize servers to firmware baselines stored at designated locations on an internal network to simplify firmware updates.

The Tech Support Report, automatically maintained by iDRAC, is a continuously updated health and status report that monitors over 5,000 key system parameters and can help cut time needed to identify and resolve server issues.

PowerEdge r730xd Rack Server - Monitor and manage from anywhere

Monitor and manage from anywhereAdminister systems from your smartphone, laptop or at the system with both local and remote management options.

Use your smartphone with the OpenManage Mobile app to securely monitor remote systems, or connect to a server via Near Field Communications (NFC) to access a status report and logs using the iDRAC Quick Sync feature.
Use a USB memory stick to upload configurations files for BIOS, iDRAC, PERC, LAN on motherboard (LOM) and network interface card (NIC) updates with the iDRAC Direct feature.
Connect a laptop via USB to a specific server’s embedded iDRAC8 management-console interface for robust "at the system" management.

Accelerate IT service deploymentStreamline infrastructure provisioning, speed up workload deployment and simplify IT service delivery through the unified console and highly intuitive user interface of Active System Manager. Enhanced for the latest generation of PowerEdge servers, it features:

Template-based server and IO configurations, identity management and service migration capabilities
Fast workload deployment with an expanding out-of-box template library
Cloud enablement with support for infrastructure as a service (IaaS) and platform as a service (PaaS), including Red Hat and VMware solutions

PowerEdge r730xd Rack Server - Enabling the future-ready data center

Enabling the future-ready data centerProviding ample scale-out capacity with a versatile, multi-terabyte storage footprint, the R730xd delivers among the best cost-per-gigabyte performance in a 2U server. It also provides the availability and efficiency needed to power data centers yet to come, with features including:

Two Intel® Xeon® E5-2600 v4 processors (22 cores max per CPU; 44 total max cores per server)
24 DIMM slots supporting up to 1.5TB of memory
Redundant power supply units (PSUs)
Hot-plug and swappable PSUs, HDDs and fans
Dual SD card option for failsafe hypervisors
Fresh Air 2.0 configurations

Teknik Spesifikasyonlar

Processor

Intel® Xeon® processor E5 2600 v4 product family

Operating System

Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®

Chipset

Intel C610 series chipset

Memory1

Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Embedded Hypervisor (Optional)

Supported optional hypervisors:
Microsoft® Windows Server® 2008, with Hyper-V®
VMware® vSphere® ESXiTM
Citrix® XenServer®

Storage

SAS, SATA, nearline SAS, SSD, PCIe SSD:
Up to 81TB with 18 x 1.8” 960GB SATA SSD = 8 x 3.5” SATA/nearline SAS HDD
Up to 46.8TB with 24 x 2.5” 1.8TB hot-plug SAS HDD + 2 x 2.5” 1.8TB hot-plug SAS HDD
Up to 131.6TB with 12 x 3.5 8TB nearline SAS HDD = 4 x 3.5 8TB nearline SAS + 2 x 2.5 1.8TB SAS HDD or SSD

Drive Bays

Internal hard drive bay and hot-plug backplane:
Up to 18 x 1.8” SSD: SATA
Up to 24 x 2.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA, up to 4 NVMe Express Flash PCIe
Up to 16 x 3.5” + 2 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

Slots

Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card

RAID Controllers

Internal:
PERC H330
PERC H730
PERC H730P
External:
PERC H830

Network Controller

4 x 1Gb, 2 x 10Gb

Communications

Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

1100W AC, 86 mm 13G (Platinum+)
1100W DC, 86 mm 12G (Gold)
750W AC, 86 mm 12G (Platinum)
750W AC, 86 mm 12G (Diamond)
495W AC, 86 mm 12G (Platinum)

Availability

ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller

Chassis
