Genel Özellikler

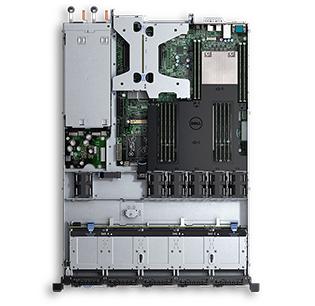

Peak 2-socket performance in a compact packageDelivering peak 2-socket performance to space-constrained data centers, the PowerEdge R430 is a short-depth (24") entry rack server. It is an excellent fit for a wide range of workloads, including:

High-performance computing (HPC)
Web serving
Infrastructure scale-out
Surveillance and site security

The R430 is also highly attractive as a dedicated backup or development server.

Deliver peak performanceDrive powerful performance across a wide range of workloads with the latest Intel® Xeon® processor E5-2600 v4 product family, with up to 22 cores per processor. Boost memory and I/O performance with:

12 DIMM slots that allow you to grow memory capacity over time
DDR4 memory that provides as much as 15 percent greater memory bandwidth and draws up to 30 percent less power than previous-generation DDR3 RAM
Up to 10 high-IOPS 2.5" hard drives and two PCIe Gen3 slots that drive twice the data throughput compared to PCIe Gen2

Scale and adapt with greater versatility

Harness the data explosion with scalable internal storage capacity, and flexibly adapt to changing workload conditions with an expandable platform ready for virtualization and high-availability clustering. As you grow, ensure a high level of protection for your virtualized workloads with hypervisor redundancy through Dell's innovative Failsafe Hypervisor.

Maximize operational efficiency

Save time and reduce potential for error with systems management features that automate your PowerEdge server lifecycle management tasks.

Speed time to production and drive better ROIby automating OS deployment, server configuration and updates with the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller.
Control data center availability more effectivelyby monitoring and managing the health and availability of Dell PowerEdge servers anytime, anywhere through OpenManage Mobile and a handheld device.
Harness your energy budget with energy-efficient processors, memory and power supplies. Fresh Air 2.0 configurations allow you to operate confidently at extended temperatures without the need for chilled air.

Teknik Spesifikasyonlar

Processor

Intel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2

Operating System

Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®

Chipset

Intel® C610 series chipset

Memory1

DDR4 DIMMs at up to 2133MT/s
Maximum RAM: Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB

Hypervisor SupportCitrix® XenServer®
Microsoft® Windows Server® 2008, with Hyper-V®
VMware® vSphere

Storage

SAS, SATA, Nearlline SAS, SSD

Drive Bays

Multiple R430 chassis available:
10 x 2.5" hot-plug drives
8 x 2.5” hot-plug drives
4 x 3.5” hot-plug drives
4 x 3.5” cabled drives

Slots

2 PCIe 3.0

RAID Controllers

Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830

Network Controller

4 x 1GbE LOM

Communications

Optional add-in NICs, HBAs

Power

450W, 550W PSU

Availability

ECC memory
Single Device Data Correction (SDDC)
Spare Rank
Hot-plug hard drives
Hot-plug redundant power
iDRAC8 with Lifecycle Controller
Support for HA clustering
Virtualization-ready
Internal Dual SD Module (Failsafe Hypervisor)
TPM 1.2

Graphics Card

Video Type: Integrated Matrox G200 with iDRAC8
Video Memory: 16MB shared with iDRAC8 application memory

Chassis

1U Rack

Management

Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade)
16GB vFlash media (upgrade) iDRAC Quick Sync
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft® System Center
Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage
