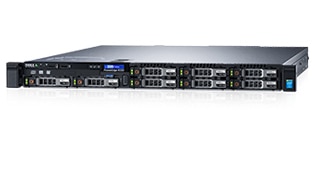

Dell PowerEdge R330 Server

Dell PowerEdge R330 Server Detayları

ÖZEL FİYAT TEKLİFİ ALIN

R330 Spec Sheet

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Accelerate application performance in SMB and Remote Office/Branch OfficeDrive applications faster while providing room for future growth with the the latest Intel® Xeon® processor E3-1200 v5 product family, DDR4 memory and PCIe Gen3 I/O.

Drive greater memory performance and expand capacity up to 64GB through time with 4 x DIMM slots and DDR4 memory, which transfer data 33% faster than previous-generation DDR3.2
Boost data throughput with 2 x PCIe Gen 3.0 slots driving 2x data throughput compared to Generation 2.0.
Drive 2x IOPS performance with the PowerEdge PERC9 RAID Controller, compared to previous-generation PowerEdge R320 equipped with PERC8.3

Discover greater versatility

Harness data growth with up to 4 x internal 3.5" cabled or hot plug HDD or 8 x 2.5" hot plug HDD.
Enhance storage options with up to two optional 1.8" SSD drives to accelerate system boot/reboot time.
Adapt to changing workload conditions with a virtualization-ready server supporting Citrix® ZenServer®, Microsoft Hyper -V, VMware® vSphere ESXi, and R ed Hat® Enterprise Virtualization.

Maximize operational efficiency

Deploy rapidly and turn the server over for productive work sooner with Dell OpenManage systems management solutions.
Easily monitor system health and behavior with a simple, intuitive Dell OpenManage Essentials console.
Save IT administrator time by automating firmware updates — up to 92% reduction in firmware update time using Repository Manager auto-updates compared to manual updates.

Teknik Spesifikasyonlar

Processor

1 processor from the following product families:
Intel® Xeon® processor E3-1200 v5 product family
Intel Pentium®
Intel Core i3®
Intel Celeron®

Operating System

Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Red Hat® Enterprise Linux®
VMware® Vsphere® 2015
SUSE® Linux Enterprise Server®

Chipset

Intel C236

Memory1

Architecture: Up to 2133MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB

Slots

2 x PCIe 3.0 slots + 1 slot for internal storage

RAID Controllers

RAID Controllers: PERC S130, PERC H330, PERC H730, PERC H830

Network Controller

2 x 1GbE

Communications

Add-in network interface cards (NICs) and host bus adapters (HBAs)
Broadcom dual and quad-port 1Gb Base-T adapter
Intel dual and quad-port 1Gb Base-T adapter
Qlogic Quark dual-port 10Gb SFP+ and Base-T adapter
Fiber Channel HBAs
Emulex 8Gb

Power

Up to 2 x 350W hot plug redundant power supplies

Availability

Hot-swap 3.5” front access hard drives
Hot-swap 2.5” front access hard drives
Hot-plug power supply units (PSU’s)

Chassis

1U rack server

Management

Systems management:
• IPMI 2.0 compliant
• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center

Dell OpenManage Integrations:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell OpenManage Integration for VMware® vCenter™

Dell OpenManage Connections:
• HP Operations Manager
• IBM Tivoli® Netcool®
• CA Network and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:
• iDRAC8 with Lifecycle Controller
• iDRAC8 Express (default)
• iDRAC8 Enterprise (upgrade)
• 8GB vFlash media (upgrade)
• 16GB vFlash media (upgrade)

Rack Support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooledmounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

Dimensions
