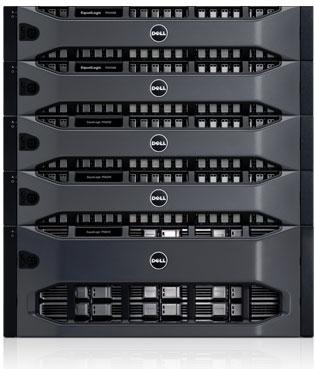

Dell EqualLogic PS6210 Series

Dell EqualLogic PS6210 Series Ürününün Özellikleri ve Detayları

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

PS6210E	PS6210X	PS6210XV	PS6210S	PS6210XS
Hard Disk Drives	24 hot-pluggable 3.5" 7.2K RPM NL-SAS drives	24 hot-pluggable 2.5" 10K RPM SAS drives	24 hot-pluggable 2.5" 15K RPM SAS drives	24 hot-pluggable 2.5" SSDs	7 hot-pluggable 2.5" SSDs and 17 hot-pluggable 2.5" 10K RPM SAS drives
Drive Capacities	2TB, 3TB, 4TB, 6TB	600GB, 900GB, and 1.2TB	300GB, 600GB	400GB, 800GB, 1.6TB	Combines 400GB or 800GB SSDs and 600GB or 1.2TB 10K RPM SAS drives
Self Encrypting Drives (SED)	4TB 7.2K RPM NL-SAS drives	1.2TB 10K RPM SAS drives	600GB 15K RPM SAS drives	N/A	N/A
System Capacities	Up to 144TB (up to 2.3PB with 16 arrays)	Up to 28.8TB (up to 460.8TB with 16 arrays)	Up to 14.4TB (up to 230.4TB with 16 arrays)	Up to 38.4TB (up to 614.4TB with 16 arrays)	Up to 26TB (up to 416TB with 16 arrays)
RAID Support	RAID 6, RAID 10 and RAID 50 (for 2 TB drives)*	RAID 6, RAID 10 and RAID 50*	RAID 6, RAID 10 and RAID 50*	RAID 6, RAID 10 and RAID 50*	Accelerated RAID 6
Power	AC voltage: 100-240 VAC ±10% single phase 1080W (max, total), +5V up to 155W; +12V up to 924W;+5Vsb up to 10W Frequency: 50/60 Hz Power factor: 0.98 (minimum) Power supplies: Dual, optional dual 1080W DC-DC	AC voltage: 100-240 VAC ±10% single phase, 700 W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W Frequency: 50/60 Hz Power factor: 0.98 (minimum) Power supplies: Dual, optional dual 700W DC-DC	AC voltage: 100-240 VAC ±10% single phase 700 W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W Frequency: 50/60 Hz Power factor: 0.98 (minimum) Power supplies: Dual, optional dual 700W DC-DC	AC voltage: 100-240 VAC ±10% single phase, 700 W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W Frequency: 50/60 Hz Power factor: 0.98 (minimum) Power supplies: Dual, optional dual 700W DC-DC	AC voltage: 100-240 VAC ±10% single phase, 700 W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W Frequency: 50/60 Hz Power factor: 0.98 (minimum) Power supplies: Dual, optional dual 700W DC-DC
OS Supported	Microsoft Windows Server® including Hyper-V® VMware® ESX Server™ Red Hat® Enterprise Linux® (RHEL) SUSE® Enterprise Linux® (SLES) Oracle® Linux® Citrix® XenServer® For a complete list of supported OS versions including software initiators, NICs/CNAs & HBAs, please see theDell Storage Compatibility Matrix: http://en.community.dell.com/dell-groups/dtcmedia/m/mediagallery/20438558.

Physical	Height: 4U / 175 mm (6.87 inches) Width: 446 mm (17.57 inches) Depth: 580 mm (22.83 inches) Weight: 47.1 kg (103.8 lb)**	Height: 2U / 87 mm (3.42 inches) Width: 446 mm (17.57 inches) Depth: 546 mm (21.50 inches) Weight: 26.4 kg (58.3 lb)**	Height: 2U / 87 mm (3.42 inches) Width: 446 mm (17.57 inches) Depth: 546 mm (21.50 inches) Weight: 26.4 kg (58.3 lb)**	Height: 2U / 87 mm (3.42 inches) Width: 446 mm (17.57 inches) Depth: 546 mm (21.50 inches) Weight: 26.4 kg (58.3 lb)**	Height: 2U / 87 mm (3.42 inches) Width: 446 mm (17.57 inches) Depth: 546 mm (21.50 inches) Weight: 26.4 kg (58.3 lb)**
Physical	Packaged physical: Length: 905 mm (35.63 inches) Width: 607 mm (23.88 inches) Depth: 521 mm (20.50 inches) Packaged weight: 66.0 kg (145 lbs)**	Packaged physical: Length: 851 mm (33.50 inches) Width: 616 mm (24.25 inches) Depth: 508 mm (20.00 inches) Packaged weight: 36.0 kg (79.3 lbs)**	Packaged physical: Length: 851 mm (33.50 inches) Width: 616 mm (24.25 inches) Depth: 508 mm (20.00 inches) Packaged weight: 36.0 kg (79.3 lbs)**	Packaged physical: Length: 851 mm (33.50 inches) Width: 616 mm (24.25 inches) Depth: 508 mm (20.00 inches) Packaged weight: 36.0 kg (79.3 lbs)**	Packaged physical: Length: 851 mm (33.50 inches) Width: 616 mm (24.25 inches) Depth: 508 mm (20.00 inches) Packaged weight: 36.0 kg (79.3 lbs)**

The following specifications apply to all EqualLogic PS6210 series models:

Storage Controllers: Dual controllers with 16GB non-volatile memory per controller

Network Interfaces: Management network: One 100BASE-TX per controller

Interface ports: Two 10GBASE-T with RJ45 and two 10GbE SFP+ for fibre or twin-ax copper cabling

Volumes: Up to 1,024

Snapshots: 512 per volume/up to 10,000 total per group

Volume connections per PS series pool/group: Up to 1024/4096

Host Protocol: Any standards-compliant iSCSI initiator

TCP Network Support: IPv4, IPv6 compliant. USGv6 certified.

Expansion Option: Can be combined with other PS Series arrays in the same SAN group online; maximum of 16 total arrays per group that can support a maximum of 384 drives and up to 1.536PB with the PS6210 Series. With multigenerational capabilities, you can support up to 10 cross-generation types of controllers with multiple network configurations and drive types in a new or existing PS Series SAN resource pool, all managed by a single interface. Maximum number of drives and capacity varies based on configuration model and drive types. Additionally, PS and SC Series offer common management and cross-platform replication capabilities between arrays, providing PS Series customers the flexibility to add SC Series arrays to their environment, if and when they choose.1

Reliability:
Redundant hot-swappable controllers with vertical port sharing
Hot-swappable disks and power supplies

Enclosure Monitoring System:
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives

Management Interfaces:
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface1

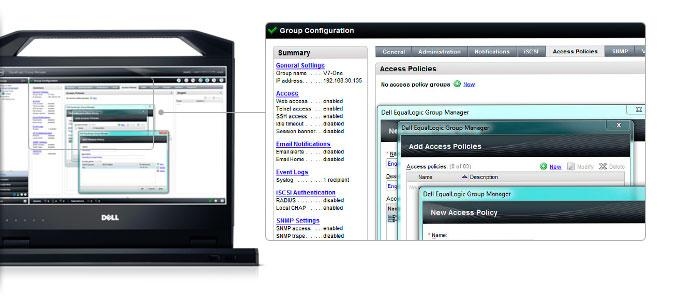

Group Manager (GUI & CLI)
SAN Headquarters multi-group performance and event monitoring tool
Virtual Storage Manager vCenter plugin
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL)
Host scripting, including Windows PowerShell
Multi-administrator support

Security:
CHAP authentication
Access control for iSCSI as well as new Access Control Policies
Access control for management interfaces including Active Directory, LDAP, or RADIUS support

Notification Methods: SAN Headquarters alerting, including Dell SupportAssist,SNMP traps, e-mail, syslog

Environmental Operating Conditions:
Temperature range: 5° to 40°C (41° to 104°F)
Storage temperature: –40° to 65°C (–40° to 149°F)
Altitude: For altitudes above 2950 feet, the maximum operating temperature is derated 1ºF/550 ft.
Operating Relative humidity: 20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour
Operational shock: Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
Operating Vibration: 0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
Acoustics Category 4: <=7.2 bels at 23C +/- 2C
Air Quality: Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985

Rack Support: ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks

Teknik Spesifikasyonlar

Streamline storage management

The Dell EqualLogic PS6210 array allows you to manage more data with fewer resources, and integrate with common application environments and various operating systems. In addition, the latest Dell Storage PS and SC Series software releases provide common management and cross-platform replication capabilities, allowing you to take advantage of new functionality while utilizing existing investments.2 The PS6210 Series is designed to:

Deploy in virtualized VMware® environments, Microsoft® Exchange and SQL Server® applications and distributed DAS implementations
Support block and file data along with the FS Series through a single intuitive interface
Support server and desktop virtualization
Advanced software that eases management

Manage day-to-day tasks, replicate volumes and initiate migration from PS Series to SC Series arrays with the latest software releases, which include Dell Storage Manager (DSM).3 The Dell Storage PS Series Array Software helps you store, protect, virtualize and optimize data on the PS6210. The full Dell Storage PS Series software suite also includes:
- PS Series Host Software that extends the functionality of the array-based software to enable cooperation with host operating systems, hypervisors and applications
- Host Integration Tools for Microsoft®, VMware® and Linux® products
- SAN HQ management software with an interface for monitoring your groups of PS Series arrays that are integrated into Dell Services with SupportAssist
- A new level of performance
  The Dell EqualLogic PS6210 Series arrays provide enhanced, simplified performance for the small-to-medium enterprise. Dell EqualLogic PS6210 arrays can drive up to approximately 2GB/sec of throughput per array for sequential, large-block workloads.4 In addition, flash-enabled PS6210 arrays provide up to three times the random performance of prior-generation arrays.5 The full line of PS6210 Series arrays brings 10GbE iSCSI SAN speed and efficiency to real-world applications, featuring:
  - Dual controllers, each with 16GB non-volatile cache
  - Two 10GBASE-T RJ45 auto-sensing (10Gb/1Gb/100Mb) ports
  - Two 10GbE SFP+ ports for fibre or copper cabling
  - Up to 24 hot-pluggable drives, including SAS, NL-SAS and SSD
  - Model options for 2.5" drives and 3.5" drives
  - Up to 144TB capacity per array
  Dell was recently given the iSCSI market leader award for the sixth year in a row.6 The PS6210 adds new levels of performance and convenience to the Dell Storage PS Series portfolio.
- Enhance the value of your data center
  Dell Storage PS Series customers achieved up to a 513 percent return on investment in 6.2 months on average.7 The PS6210 Series arrays offer low TCO through a family of solutions that can be tailored to fit your exact needs, and grow with you, simply and cost effectively, with:
  - All-inclusive software functionality
  - No-forklift upgrades
  - Multigenerational compatibility that allows mix-and-match arrays to build tiered storage
  - Seamless rollout or retirement of arrays
  - Long-term investment protection by allowing PS Series arrays to coexist with SC Series arrays2
